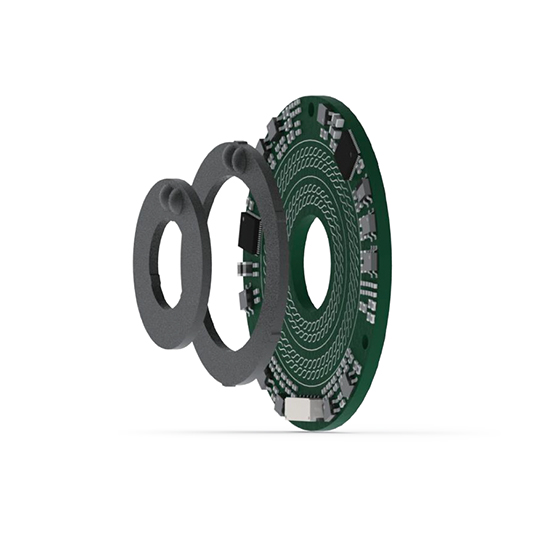

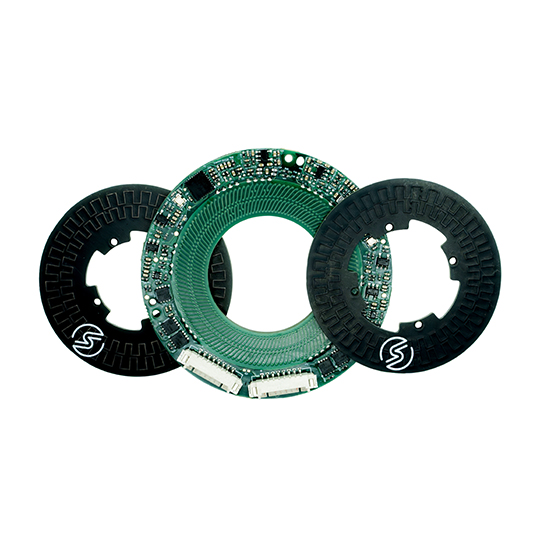

DIAP- Dual-Output Redundant Inductive Encoder
SENSNA absolute rotary encoder utilizes techniques of inductive, having hollow shaft, high precision, high reliability, and non-contact features. The ultra-high precision and high-end functions of the electric encoder makes it integrated with modern motion control applications, meeting the strict requirements.
SENSNA absolute rotary encoder offers a variety of diameters, models, communication interfaces, and connection options. All models are compatible with a wide range of controllers and drives, covering all fields of precision motion control from aerospace and defense, harsh environment, to industrial, medical and automotive applications.
| Product |
OD/ID/Height mm |
Weight g |
Resolution bit |
Accuracy |
Max.operational speed rpm |
| DIAP-34 | 34/10/7.6 | 10 | 17-19 | 0.015° | 6000 |
| DIAP-50 | 50/20/7.6 | 20 | 18-20 | 0.008° | 6000 |
| DIAP-58 | 58/18-21/7.6 | 25 | 18-20 | 0.008° | 6000 |
| DIAP-70 | 70/36/7.6 | 35 | 18-20 | 0.008° | 6000 |
| DIAP-78 | 78/31-35/7.6 | 55 | 18-20 | 0.008° | 6000 |
| DIAP-90 | 90/56/7.6 | 50 | 19-21 | 0.006° | 6000 |
| DIAP-110 | 110/76/7.6 | 65 | 19-21 | 0.006° | 6000 |
Supply voltage: 5-24V
Electrical interface: RS-422 Shielded cable
Communication: SSi、BiSS-C、UART、RS-485、UART、ABZ
Operating temperature: -20ºC - +60ºC
Protection: IP 40
