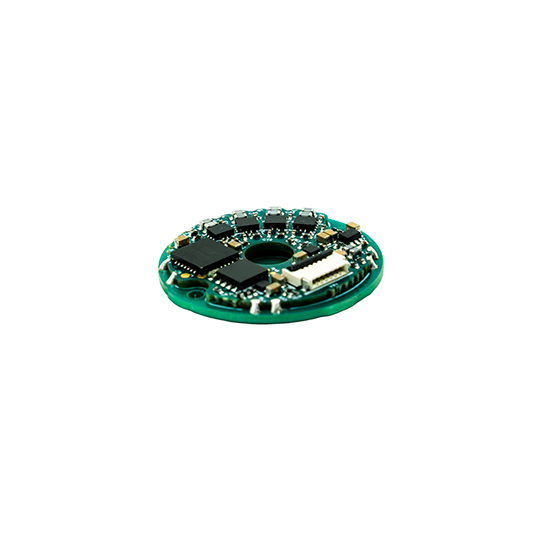

IAP- Unencapsulated Kit Inductive Encoder
SENSNA absolute rotary encoder utilizes techniques of inductive, having hollow shaft, high precision, high reliability, and non-contact features. The ultra-high precision and high-end functions of the electric encoder makes it integrated with modern motion control applications, meeting the strict requirements.
SENSNA absolute rotary encoder offers a variety of diameters, models, communication interfaces, and connection options. All models are compatible with a wide range of controllers and drives, covering all fields of precision motion control from aerospace and defense, harsh environment, to industrial, medical and automotive applications.
|
Product |
OD/ID/Height （mm） |
Weight （g） |
Resolution （bit） |
Accuracy |
Max. operational speed （rpm） |
|
IAP-20 |
20/4/6.5 |
4 |
15-17 |
0.05° |
4000 |
|
IAP-40 |
40/10/8 |
10 |
17-19 |
0.015° |
6000 |
|
IAP-60 |
60/25/8 |
18 |
18-20 |
0.008° |
8000 |
|
IAP-80 |
80/35/8 |
30 |
18-20 |
0.008° |
8000 |
|
IAP-100 |
100/48/8 |
40 |
19-21 |
0.006° |
6000 |
|
IAP-140 |
140/90/9 |
75 |
19-21 |
0.006° |
6000 |
|
IAP-180 |
180/120/9 |
120 |
20-22 |
0.003° |
4000 |
|
IAP-247 |
247/172/9 |
180 |
20-22 |
0.003° |
4000 |
Supply voltage: 5-30V
Electrical interface: RS-422 Shielded cable
Communication: SSi、BiSS-C、UART
Operating temperature: -20ºC - +60ºC
Protection: IP 40
